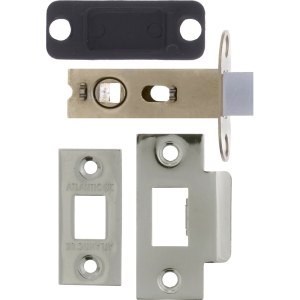

64mm Tubular Latch Polished Nickel

46mm Backset Polished Nickel Mortice Door Latch

This 2.1./2" inch premium UK quality architectural tubular door latch in a superior polished nickel finish that provides a warm silver finish when compared to standard polished chrome. Featuring a soft close curved latch with a 46mm backset (distance from faceplate to centre of spindle receiver). The 64mm case depth will require minimum 25mm (1" inch) diameter mortice.

Supplied with all screw fixings, a 27mm x 58mm polished nickel face plate with 43mm screw centres. The polished nickel strike plate keep is 29mm x 70mm, with 54mm screw centres, a tongue projection of 12mm and a height of 39mm, the keep bust box provides the finishing touches for a neat professional finish.

This bolt through passage latch has been designed to match the polished nickel door furniture range, and is suitable for all door handles including bolt through levers on rose with an 8mm spindle. The heavy duty latch follower (spindle hole) can be operated both clockwise & anticlockwise

PRO TIP:
• Adjust the tab blade on the striker keep with a flat screwdriver to ensure the door closes to the correct position.
